- All steel tank and chassis is built to handle tough industrial applications.
- Two-speed operation reduces pump time by as much as 70% over single speed versions.
- 5ft - Quick Hydraulic Coupler w/ Dust Cap. Fully rebuildable components.
- Integrated liquid filled pressure gauge takes out the guesswork when calculating force.
- 5 Year Warranty from an American name. NON-GENERIC

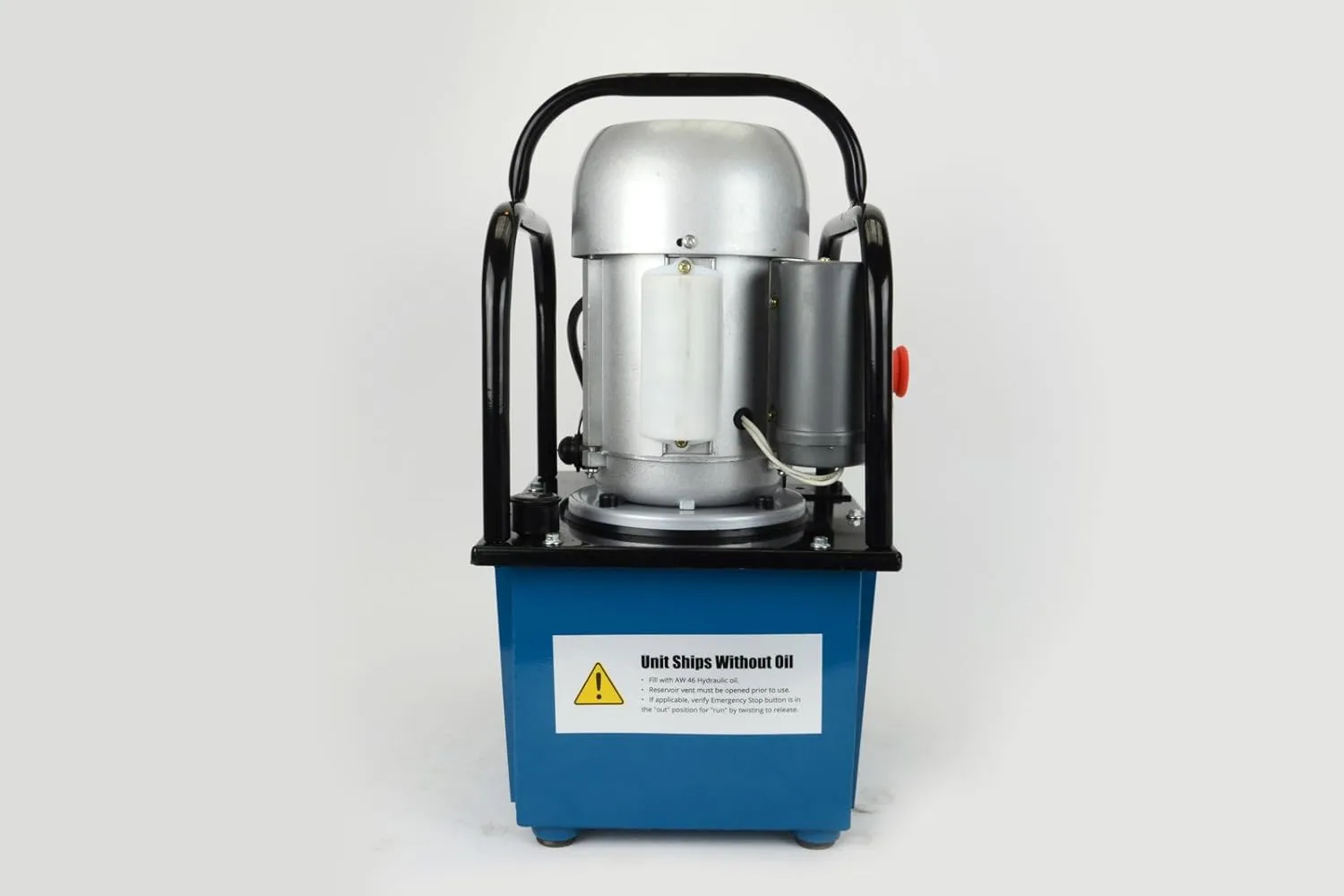

NOTE: Does not ship with hydraulic oil. You will need 2.11 gallon of AW-15 hydraulic oil.
Type: Electric Hydraulic Pump
Action: Single acting

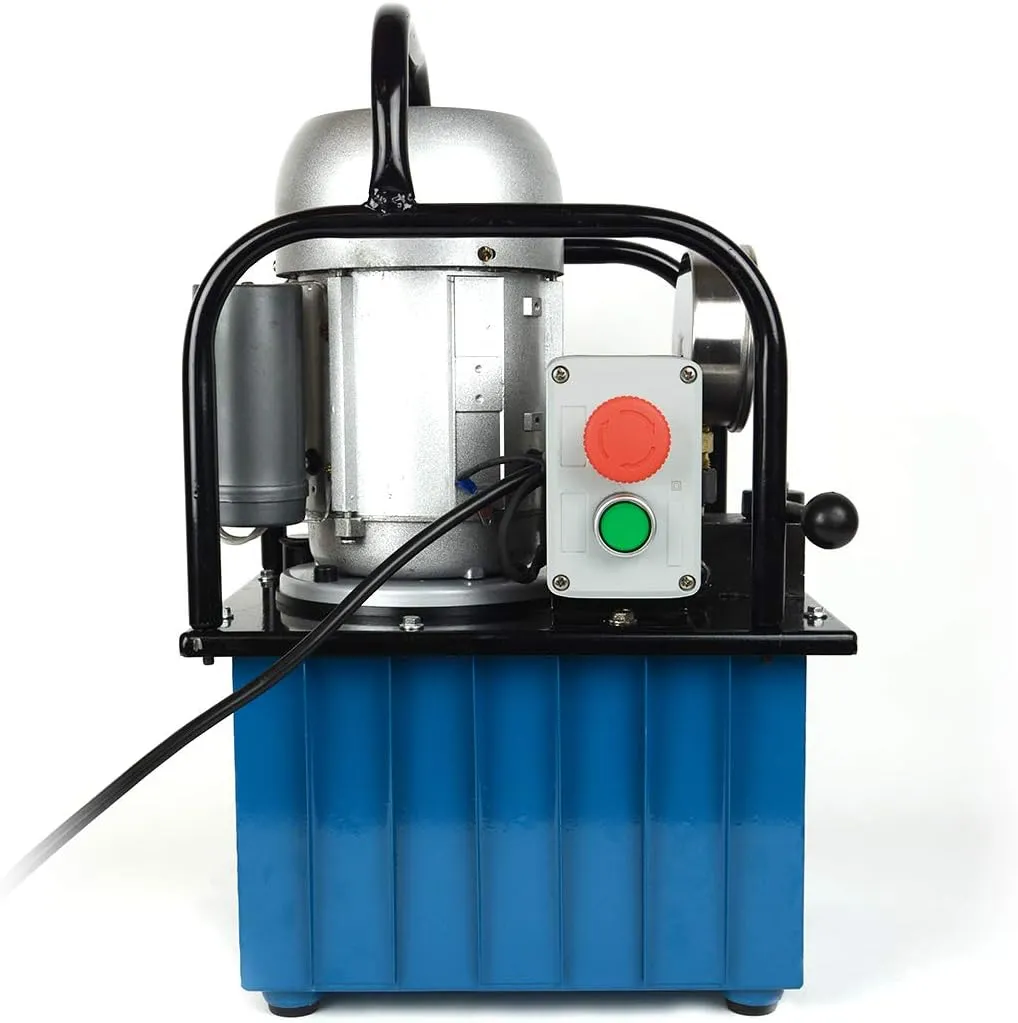

Control: Push Button Stop/ Start, Lever Valve Action - Control lever forward: Pump into hose A / Control lever backward: Returns to reservoir on hose A

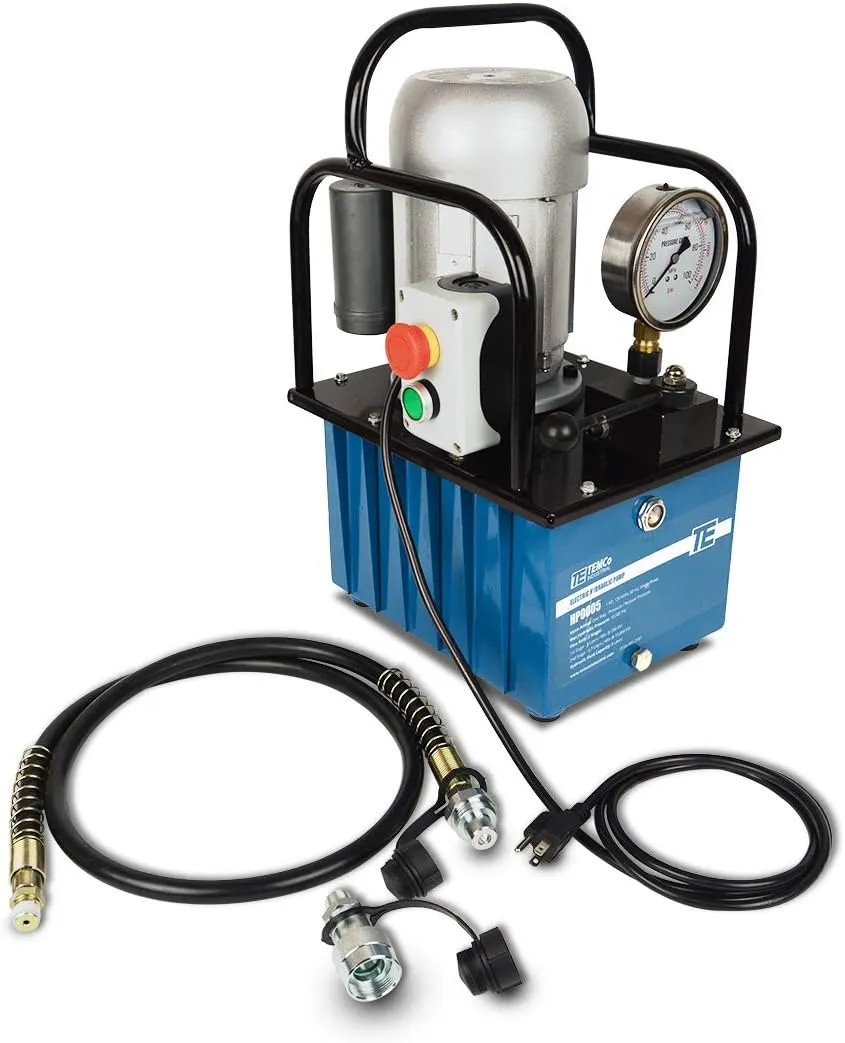

Includes Hydraulic Hose: 5ft - Quick Hydraulic Coupler w/ Dust Cap
Oil Capacity: 488 Cubic Inches (8 liters/8000cc) 2.11 Gallons
Low Pressure Stage psi: 290
High Pressure Stage psi: 10,000
Low Pressure Stage Flow Rate: 1.3 Gallons per minute
High Pressure Stage Flow Rate: 0.18 Gallons per minute
Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI)
Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
Voltage: 120
HP: 1
Warranty: 5 Years
Applications Include: Shop presses, Heavy Machinery Rigging and Moving, Auto Repair, Oil Rigging, Machine maintenance
Coupler SpecificationsStandard: ISO 14540
Thread (between male poppet end and coupling ring): M30 x 1.5 mm
Thread: 3/8" NPT
Occlusion Type: Poppet
Rated Pressure: 10,000 psi
Rated Flow: 6 GPM
Sealing Material: Nitrile Rubber (Buna-N, NBR)
Interchangeable With:
