- Positive displacement pump; Can run dry
- Quiet operation; Demand Pump
- Easy connect fittings; Industry standard mount pattern
- 2.0 gallons per minute (7.5 liters per minute)
- 120 PSI pressure (8.3 BAR); 10.0A Max

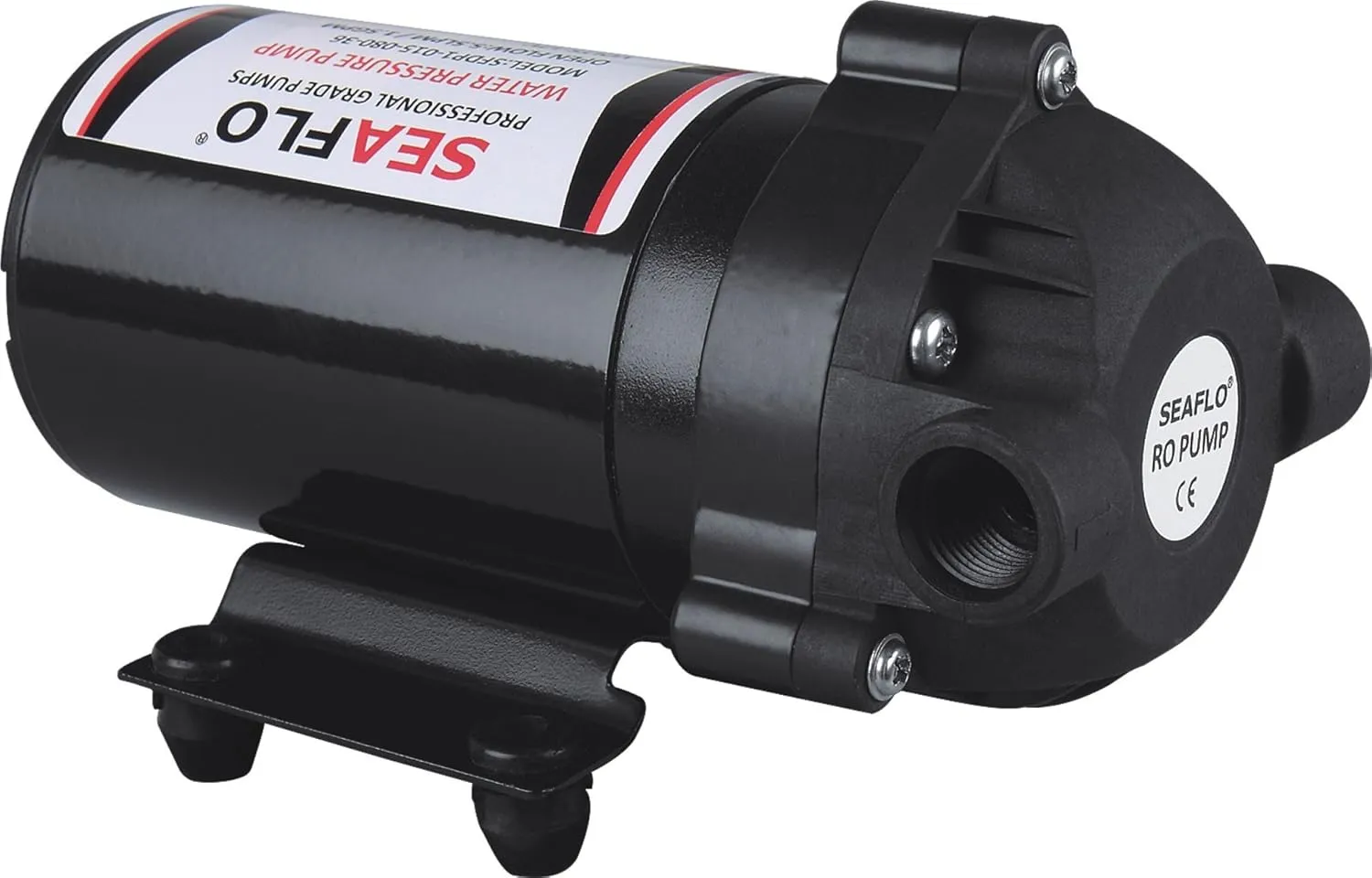

The Seaflo 36 series pumps eliminate rapid switch cycling completely. Matched with a sealed
motor, heavier wire & low amp draw, the 36 series is designed to take on any task from
constant flow at high pressure to the abusive enviornmet of on and off spot spraying in the field.
Typical Applications
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Agricultural Spraying
General Industrial
Automotive
Marine/RV
PUMP
Type:3 chamber positive displacement diaphragm
pump, self priming, capable of being run dry
Mode:By pass
Max Recommended Temperature :140°F (60°C) Max.
Priming Capabilities :6 feet (1.8 m) suction lift
Max Pressure:120PSI (8.3 bar)
Inlet/Outlet Ports:3/8"-18 FNPT
Weight:5.2 lbs (2.35 kg)
MOTOR
Duty Cycle: Continuous
Leads
DC: 16 AWG, 4.5" long with 2-Pin connector/Leads
Voltage:DC 12v
