- 1. High filling accuracy: deviation is less than 1%, and with deviation correction function
- 2. High filling speed: 17 liters/minute (water), the speed can be adjusted 1-99%
- 3. High degree of intelligence: There are automatic and inching mode, with filling parameter learning function
- 4. Various quantitative units: time: S weight: g, kg volume: ml, L
- 5. Single-point calibration: calibrate and replace the weight of the peer product as much as possible. Re-calibration is required for the filling volume. Once our products are calibrated, all weights can be accurately filled!
- 6. Full numeric keyboard: modify the parameters and input the numbers directly, without pressing the plus and minus keys to slowly add or subtract
Product parameters:

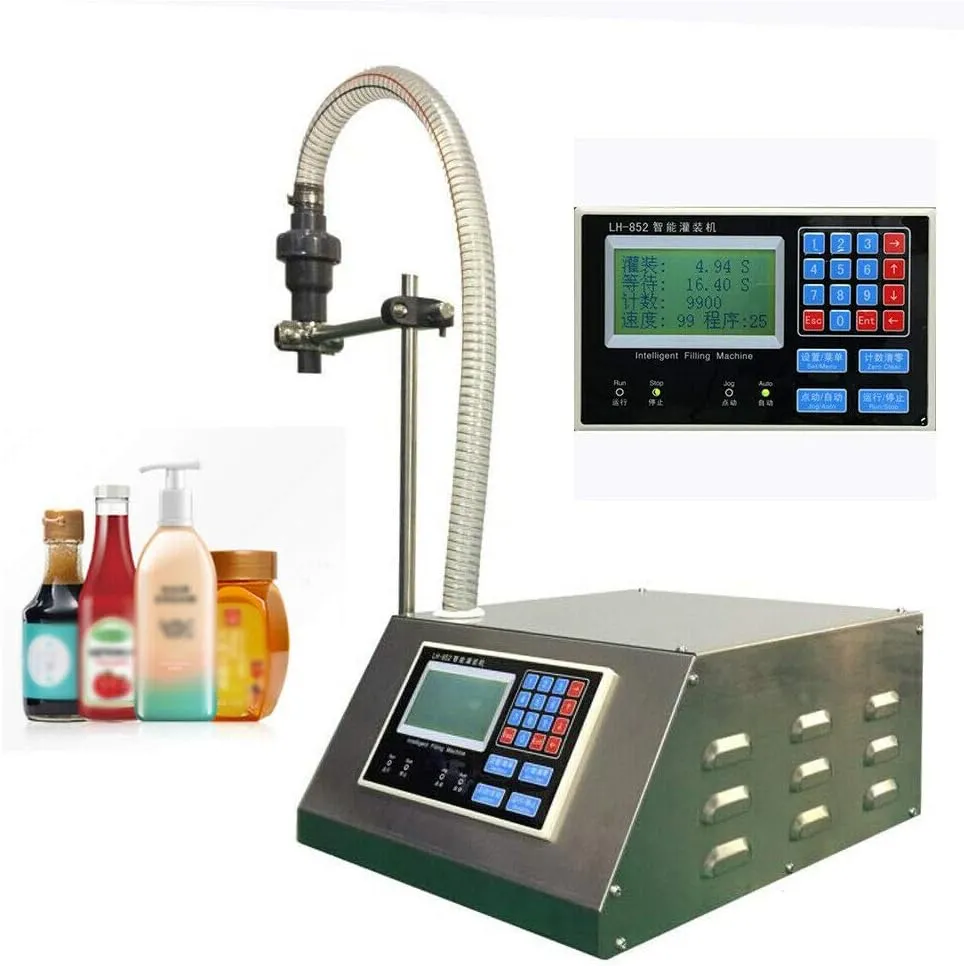

Model: LH-852
Voltage: AC110V
Rated power: 210W
Filling range: 0.01-999.99
Unit of measurement: s/g/kg/ml/l
Minimum filling: 50g(0.11lb)
Waiting time: 0.01-999.99s
Counting range: 1-99999
Filling speed: 17L/min (water)
Filling error: ±1%
Vacuum: 2m/78.74in
Nozzle: outer diameter 20mm/0.79in
Discharge tube: outer diameter 25mm(0.98in)/length 0.6m(23.62in)
Feeding tube: outer diameter 25mm(0.98in)/length 2.0m(78.74in)
Liquid temperature: ≤60℃
Host specification: 360*300*156mm/14.17*11.81*6.14in
Machine weight: 8.5kg(18.74lb)
Viscous liquid: applicable
Ordinary liquid filling: 17L/min
Viscous liquid filling: about 7L/min
Features:
This product uses a microcomputer to control the pump's working time, speed and other factors to achieve a liquid filling device with accurate output and small repeat error.
The product uses a self-priming pump, which can run continuously for a long time with low noise. It is suitable for the filling of ordinary liquid and viscous liquid.
Panel introduction
Setting/Menu: Short press this key to enter the setting interface to modify the filling parameters, long press this key for 3 seconds to enter the menu
Run/stop: press this key to start filling when filling is stopped, press this key to stop when filling
Jog/Auto: Press this key to switch working mode
Jog: Press once to fill once
Automatic: after pressing once, the filling machine finishes the countdown waiting time and then fills the second time, and continues to cycle until the run key is pressed again to stop
Count clear: filling counter data reset to zero
Esc: exit
Ent: Confirm, press this key on the working interface to directly select the program number
↑↓←→: Move cursor when modifying parameters
0-9 key: input digital indicator: light indicates the current working status of the device
Packing list:
Main unit*1, bracket*1, power cord*1, foot switch*1, hexagon wrench*1, instruction manual*1
