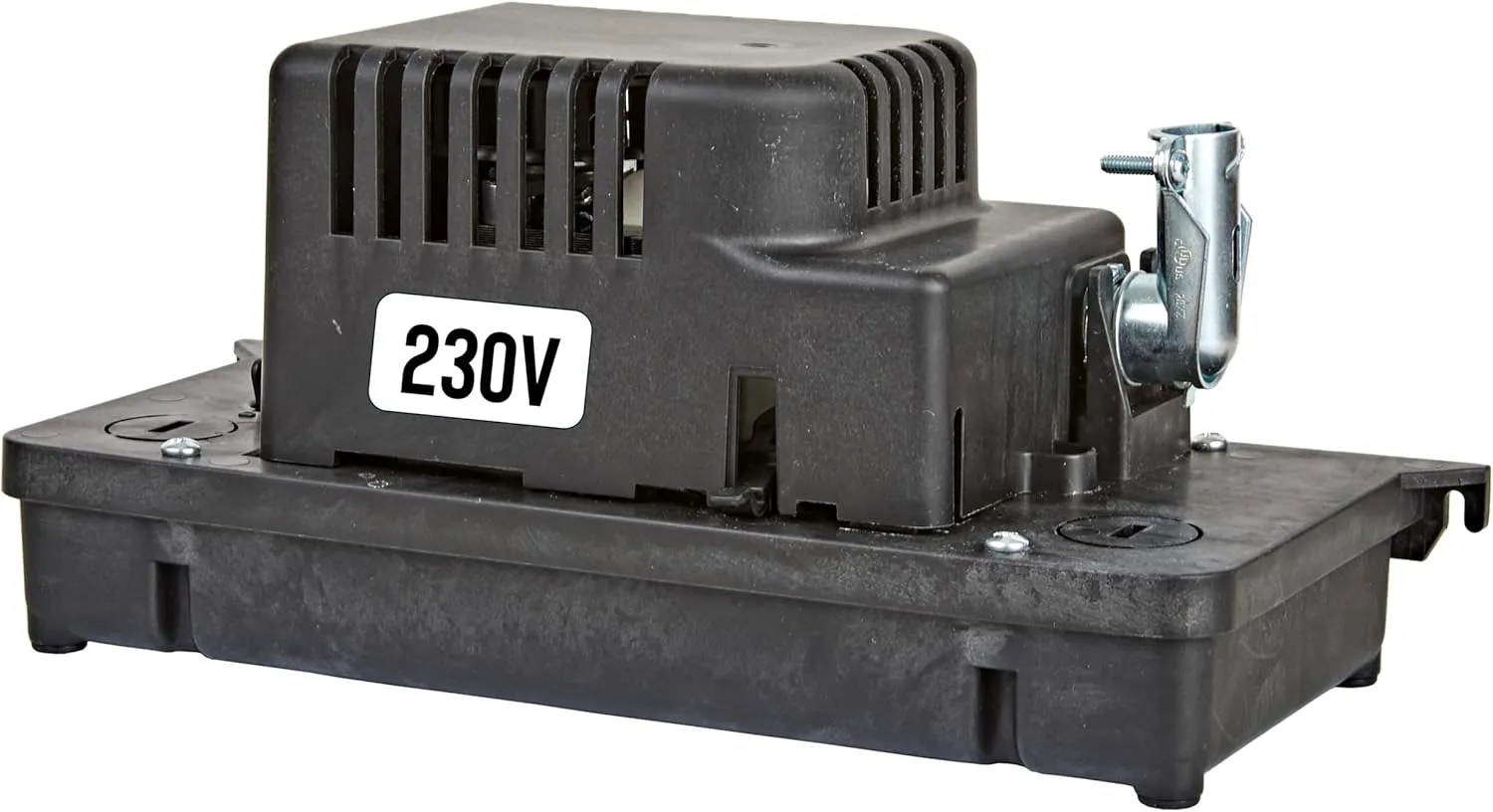

Name: Little Giant VCCA-20-P 230 Volt, 1/30 HP, 80 GPH Low Profile Plenum Condensate Removal Pump, 6-ft. Cord (plug-less), Black, 554222101
SKU: 723359

APPLICATIONS: designed for automatic collection and removal of condensate in tight plenum spaces; meets Underwriters' Laboratories Standard 2043 "suitable for use in air handling spaces"
SAFETY SWITCH WIRED: Overflow detection switch wiring included with 72-inch leads
FEATURES: 72-inch 3-conductor lead wires with adjustable conduit fitting for 1/2" diameter flexible metal conduit; pump switch test level; rubber feet; three 1-1/8" diameter inlets; cCSAus listed
MOTOR SPECIFICATIONS: 230 Volt, 1/30 HP thermal overload protected motor; 50/60 Hz; 0.6 Amps at 50 Hz; 0.5 Amps at 60 Hz; 75 Watts; 6-ft. cord; must be hard wired
PUMP SPECIFICATIONS: 80 GPH at 1-ft. lift; 17-ft. shutoff; maximum 7.4 PSI; 1/4-turn, 2 discharge adapters for 3/8-inch ID tubing or 3/8-inch copper tubing; rated to 140°F

The Little Giant VCCA-20-P 230 Volt 80 GPH low profile condensate pump is designed for automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment when gravity drainage is not possible or practical. The low tank height allows this condensate pump to be used in plenum applications. It is constructed with materials that have been tested by and meet Underwriter's Laboratories' Standard 2043, "Fire Test for Heat and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces". This pump comes with a 6-ft. cord and must be hard wired.

Little Giant VCCA-20-P 230 Volt, 1/30 HP, 80 GPH Low Profile Plenum Condensate Removal Pump, 6-ft. Cord (plug-less), Black, 554222101

Product Details
