- High-quality Material: It is made of high-quality aluminum and steel with high strength and hardness, making it wear-resistant and impact-resistant and ensuring a long service life.
- High Efficiency: The efficiency of this two-stage pump is 92%, the total flow is 16gal/min and its speed of 3600r/min can provide you with faster cycle time and greater pressure (3000PSI), which is very suitable for use on log splitters.
- Carefully Designed: The product consists of a large displacement low-pressure gear pump and a small displacement high-pressure gear pump, which can output hydraulic oil simultaneously or separately according to actual working conditions, thereby reducing power loss.
- Essential Assistant: With this hydraulic log splitter pump, you can split wood more efficiently and with less effort!
- Effortless Install: It comes with a simple structure and an English diagram, so you can easily install and start to use it in a short time.
Description

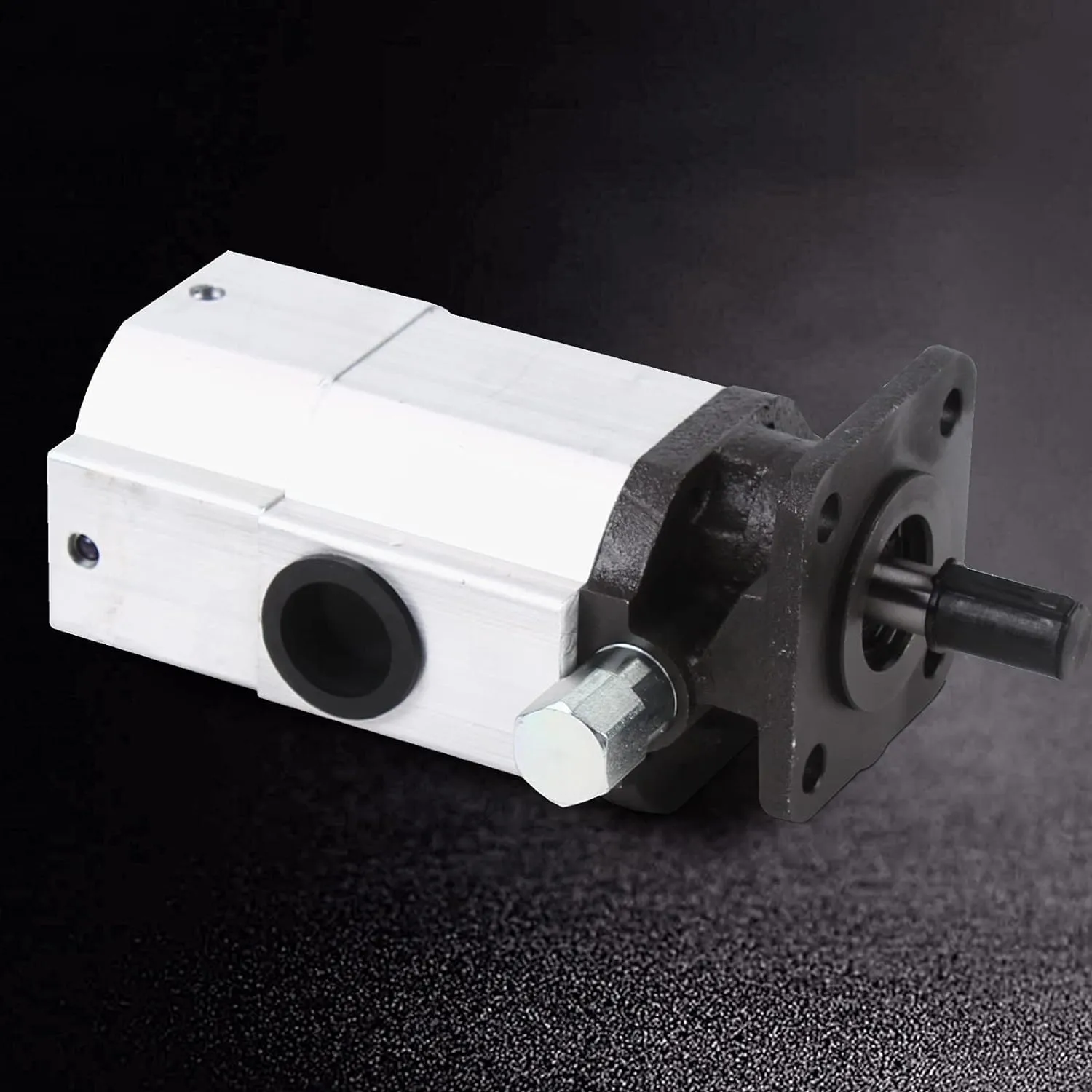

This hydraulic pump is small in size and takes up little space. This powerful product is a two-stage hydraulic pump that provides you with the fastest cycle time, ensuring quick startup and longer use every time. It greatly reduces labor intensity and increases efficiency. It starts quickly, discharges oil quickly, provides strong power for hydraulic mechanisms such as wood splitters, presses, etc., and can complete the lifting work in a short period.
Details
Relief Valve: It can prevent the pressure from exceeding the maximum allowable working pressure for safe use.
Rounded Corners and Edges: The corners are rounded and smooth to reduce abrasions from collisions and improve safety.
Application
It is suitable for applications requiring extended hydraulic cylinders such as wood splitters, presses, machine tools, truck tailgate lifts, scissor lifts, dump trailers, aerial platforms, road signs, material handling, and wheelchair lifts. It is used in conjunction with other hydraulic tools (not included) such as jaw couplers and pump brackets for a variety of operations such as lifting, pressurizing, bending, bending rows, straightening, cutting, assembling, disassembling, etc., of hydraulic wood splitters.
Specifications
Color: Black, Silver
Material: Aluminum, Steel
Assembly Required: Yes
Pump Type: Two-stage Hydraulic Pump
Rotation Direction: Clockwise
Applicable Medium: Hydraulic Oil(Not Included)
Efficiency: 92%
Maximum Pressure(Small Displacement Pump): 3000PSI
Total Flow: 62L/16GPM
Rotation Speed: 3600rpm
Shaft Diameter: 12.7mm/0.5in
Gross Weight: 3.2kg/7.05lbs
Net Weight: 2.8kg/6.17lbs
Package Size: 20*16*16cm/7.87*6.3*6.3in
Package Included
1* Hydraulic Pump
1* English Installation Diagram
All Accessories for Assembly
Notes
1. Please carefully check if the size is suitable before placing an order.
2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
