• Working pressure 10,000 psi

• Two stage operation

• 10.56 gallon oil reservoir


Choice of 110/115, 220/240 or 380/440 volt electric motors available as standard. Choice of 2, 3 or 4-way manual control valves with load holding feature on 3 & 4-way versions. Externally adjustable pressure relief for pressure settings up to 10,000 psi. Completely enclosed fan cooled low noise electric motors. Cable management features for cable/hose winding and stowage. Supplied as standard with pressure gauge and a robust roll frame.

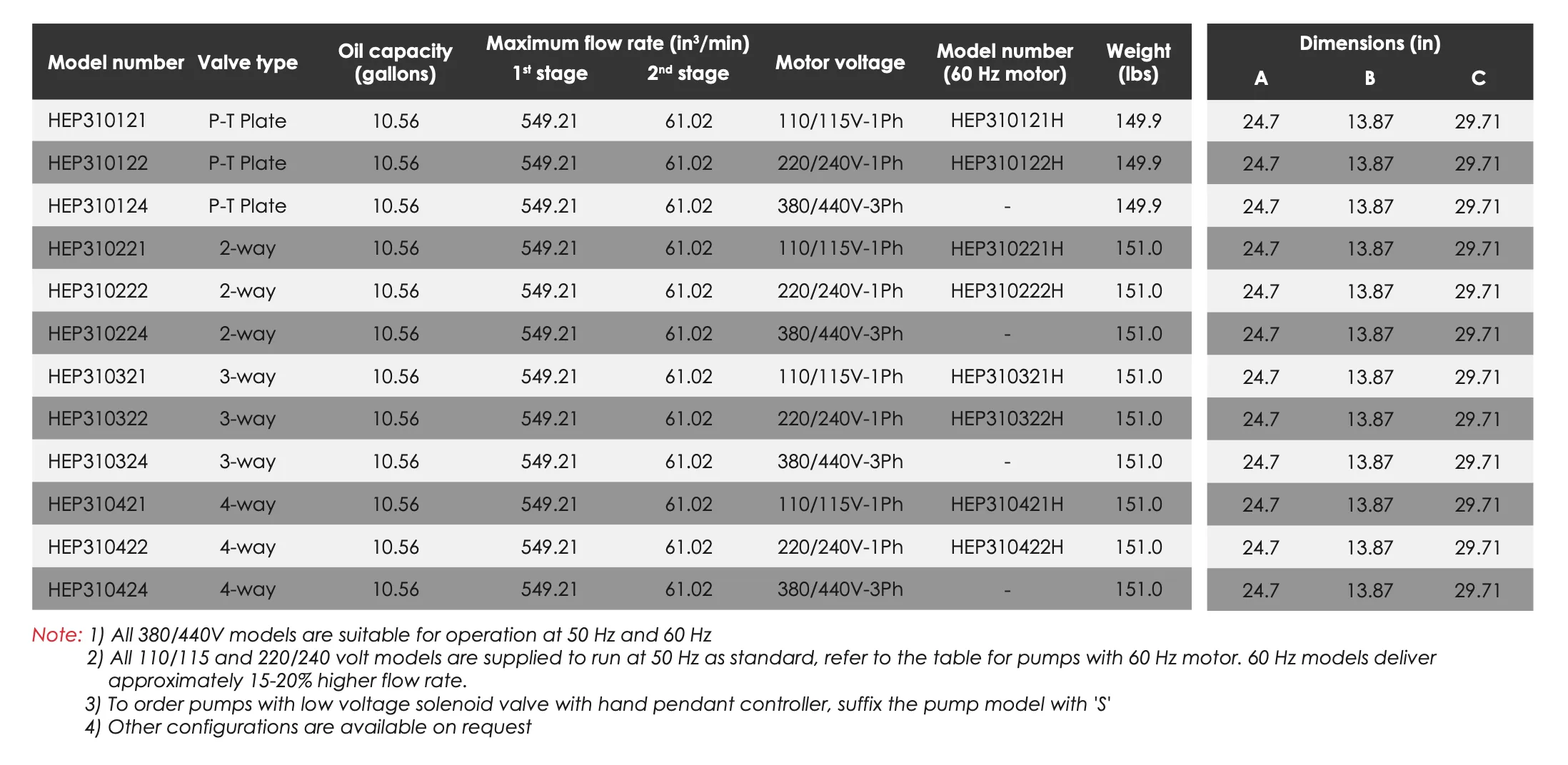

Notes:

1. All 380/440V models are suitable for operation at 50 Hz and 60 Hz.
2. All 110/115 and 220/240 volt models are supplied to run at 50 Hz as standard. Refer to the table for pumps with 60 Hz motor. 60 Hz models deliver approximately 15-20% higher flow rate.
3. To order pumps with low-voltage solenoid valve with hand pendant controller, add an "S" to the pump model number.

4. Other configurations are available on request.
