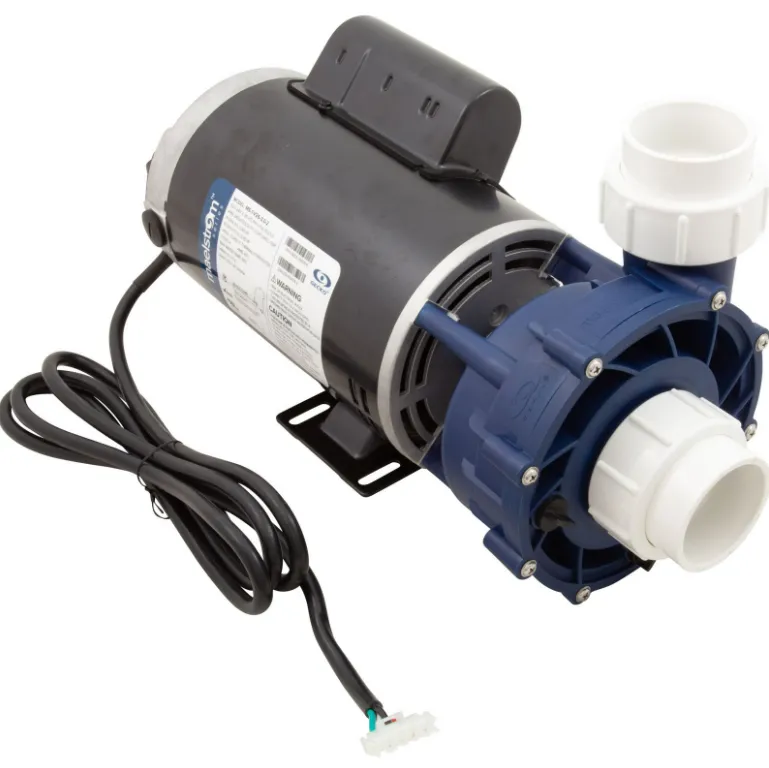

This pump offers a cost-effective alternative while maintaining the same fit, form, and function. With a robust 3.0HP rating (equivalent to other pumps rated at 4.0HP), it provides reliable performance for your relaxation needs.

 Specifications:
- Horsepower: 3.0HP
- Voltage: 230V
- Amps:
  - High Speed: 12.0 Amps
  - Low Speed: 3.5 Amps
- Frame Size: 56Y
- HZ Rating: 60
- Intake Size: 2" MBT (Measures 3" OD)
- Discharge Size: 2" MBT (Measures 3" OD)
- Flow Rate: 260 GPM
- Speeds: Dual Speed
- Includes: Pump cord (96" / AMP style connector), pump union tailpieces & gaskets
- Product Features:
  - Longer life capacitor with high temp rating up to 185 °F
  - High ambient temperature run rated at 140 °F
  - Maximum water temperature: 122 °F
  - Sealed motor bearing
  - Energy-efficient low speed
  - Gecko high-quality "Universeal" shaft seal
  - Insulation class F thermally protected
  - Standard version includes plumbing tailpieces (2), three-wing nut drain plugs, 96" cord w/ AMP connector


Product Features:
- Longer Life Capacitor With High Temp Rating Up To 185 °F
- High Ambient Temperature Run Rated at 140 °F
- Maximum Water Temperature 122 °F
- Sealed Motor Bearing
- Energy Efficient Low Speed
- Gecko High Quality "Universeal" Shaft Seal
- Insulation Class F Thermally Protected
- UL Approval E62386
- Standard Version Includes: Plumbing Tailpiece (2), Three Wing Nut Drain Plugs, 96" Cord w/ AMP Connector
- Two Year Warranty

 Substitutions For This Pump Model:
- Aqua-Flo 05334012-2040
- Waterway Executive 3721621-1D

Shop this and more spa parts at the best prices online at Spa Parts Experts.

MPN: 0800-39000

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
  • 2" Pump Union O-Ring 805-0230 (6000-645)
  • 711-4010 Waterway Heater Flat Gasket
  • 21619 Balboa ® | Heater Coupling Gasket 2"
