- Low-pressure hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
- Advances and releases a single-acting cylinder
- Maximum operating pressure of 5,000 pounds per square inch (psi)
- Single-speed pump for applications with a constantly applied load
- Pumps oil using both forward and reverse handle strokes, improving efficiency when there is limited mounting space

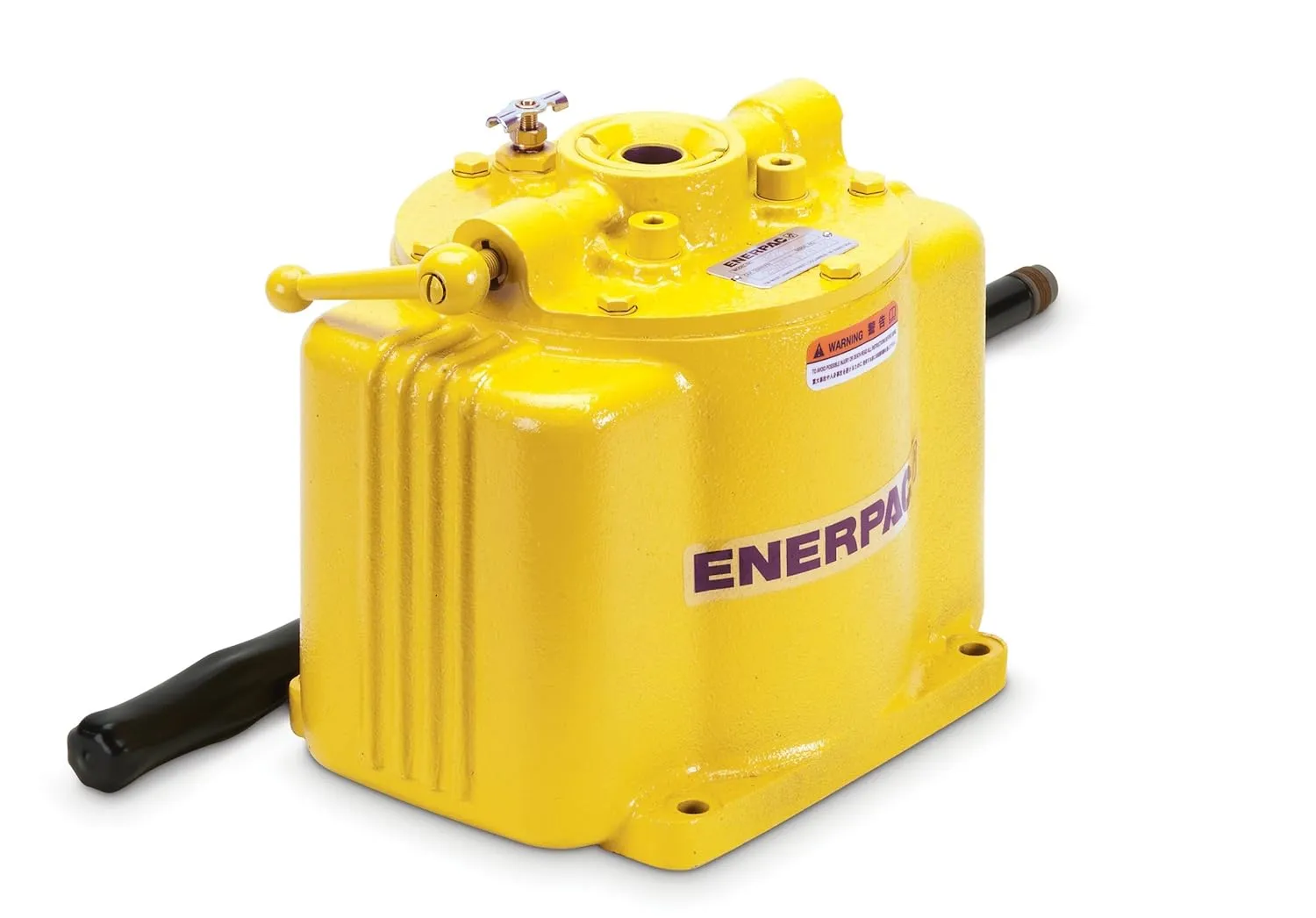

The Enerpac P-50 low-pressure, single-speed hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This single-speed hand pump is for applications with a constantly applied load. It pumps oil using both forward and reverse handle strokes, which improves efficiency when there is limited mounting space. An external load release valve and internal pressure relief valve help protect the pump from overload. The pump can be operated in either the horizontal or vertical position. The pump has a 1/4" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).
Specifications
Maximum operating pressure5,000 psiMaximum oil displacement, per stroke0.29 cubic inchUsable oil capacity200 cubic inchesPiston stroke1.50 inchesMaximum handle effort60 lb.Weight37 lb.Dimensions26.94 x 9.43 x 6.82 inches (H x W x D)H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.
Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.
Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
- Is Discontinued By Manufacturer : No
- Package Dimensions : 21.8 x 10.4 x 7.3 inches; 38.5 Pounds
- Date First Available : March 8, 2012
- Manufacturer : Enerpac
