- HIGH AIRFLOW EFFICIENCY: This bilge blower features a 6 blade fan design to maximize airflow and efficiency, ensuring optimal ventilation for your vessel while consuming ultra low current for extended service life.
- RELIABILITY PERFORMANCE: This bilge blower is equipped with a sealed motor shaft, providing better performance and reliability, ensuring consistent operations even in demanding marine environments.
- FLEXIBLE INSTALLATION OPTIONS: This marine bilge blower is designed with built in mounting feet that can be installed vertically and horizontally, allowing you to meet a variety of installation needs depending on the ship's layout.
- MARINE BUILT: The rugged motor housing of this electric blower is specifically designed to withstand the harsh conditions of marine life, ensuring that this essential marine accessory will last and perform well for years to come.
- VERSATILE COMPATIBILITY: This in line blower is suitable for 4 inch diameter hoses, providing essential ventilation to the engine compartment, galley, bilge, and cylinder head, enhancing overall safety and performance.

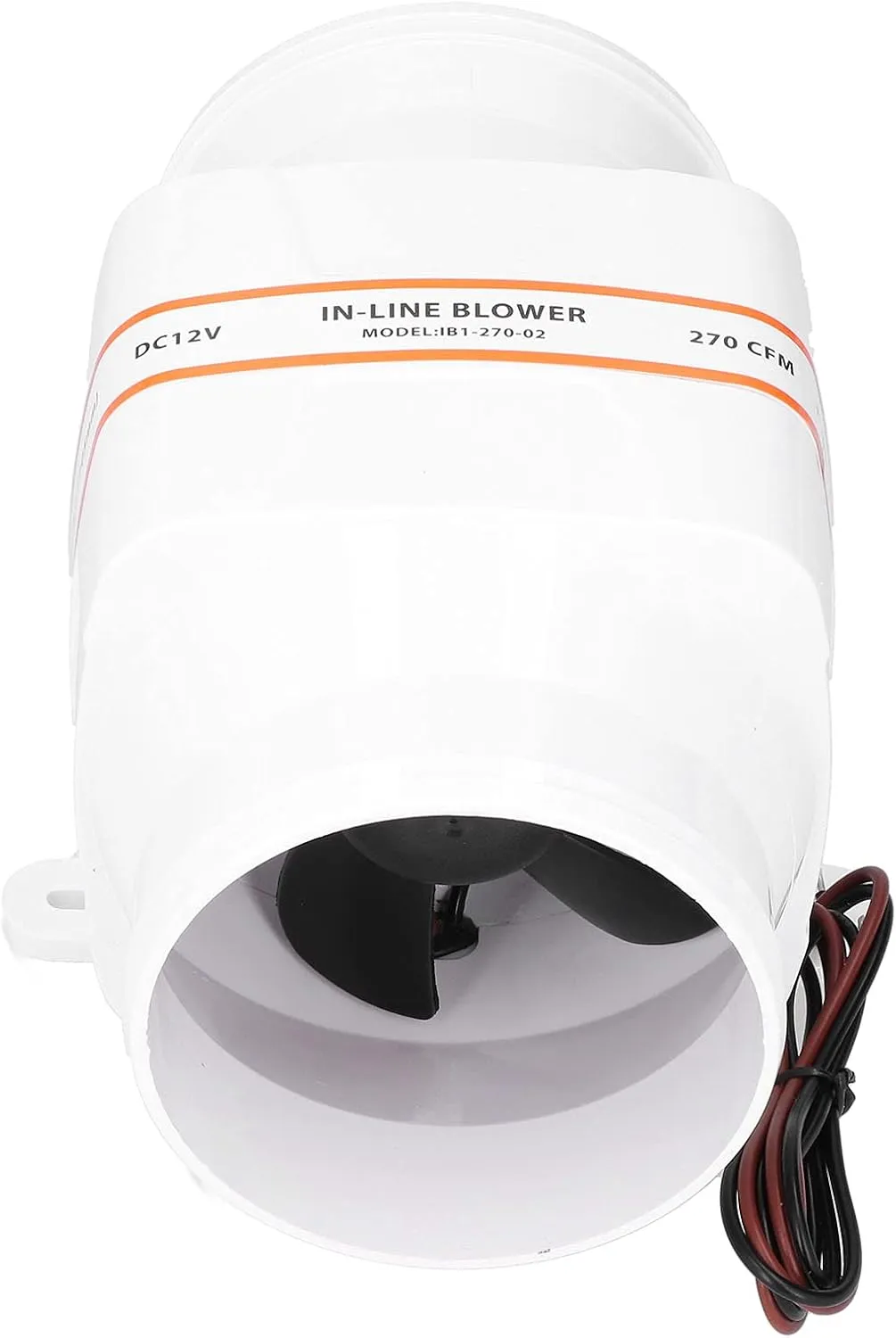

Item Type: Bilge Air Blower
Material: ABS
Model: NMIB1-270-02
Voltage: 12V
Air Flow: 270cfm / 456 cmh
Current Consumption: 6.0A
Intake Pipe Diameter: Approx. 4 inches
Wiring:
The red wire is connected to the positive pole ( )
The black wire is connected to the negative pole (-)
Package List：
1 x Bilge Water Pump
1 x Manual
Precautions:
1. The same amplifier (see ventilation parameters) installed in the positive ( ) line must be used to protect the bilge blower wire.
2. A switch with the same ampere rating should be installed in the positive circuit.
3. The minimum lead size should be 16 AWG (gauge).
